3. PLC control system is optional.
4. High quality gearbox, screws and barrel.
5. Automatic feeder.
The unit Qingdao Ruijie Plastic Company designed has a compact structure and superior performance. The screw, barrel, and mold are independently optimized by our company and produced by domestic famous factories. The machine has the advantages of uniform plasticization, good continuity, stable extrusion, high output, and long service life.

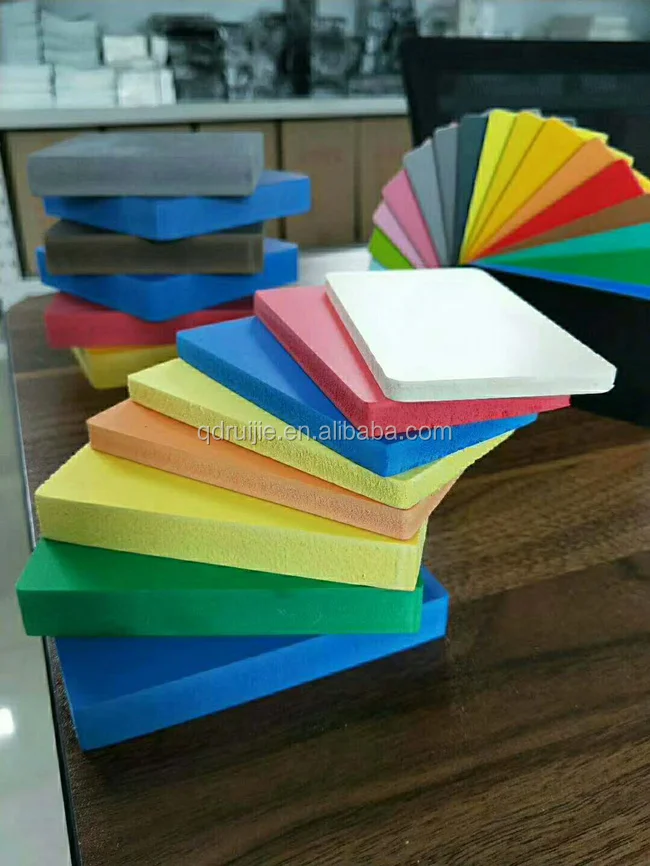

The crust foaming board is foamed by the Celuka structural foam process technology. Compared with the free foaming, the surface layer is not only flat and smooth, but has a large skin hardness and rigidity, and the mechanical properties are significantly larger than the free foam. The application of such foam board is very wide.
Applications:
1. Trade Fairs & Exhibitions
2. Interior & Exterior Signs
3. Shop fittings & Interior Designs
4. False Ceilings, Walls, Partition & Claddings for construction applications
5. Replacement for traditional industrial materials
6. Printing Usage
PVC raw materials Loading and Mixing system | |
1 | Spiral Loader or Vacuum auto Loader |
2 | High speed Heating Cooling Mixer unit |
PVC crust foam board Extrusion Line | |
3 | SJSZ80/156 Conical double screw Extruder |
4 | Mold/Die |
5 | Calibrating Platform |
6 | Cooling Bracket |
7 | Haul off unit |
8 | Cutting unit |

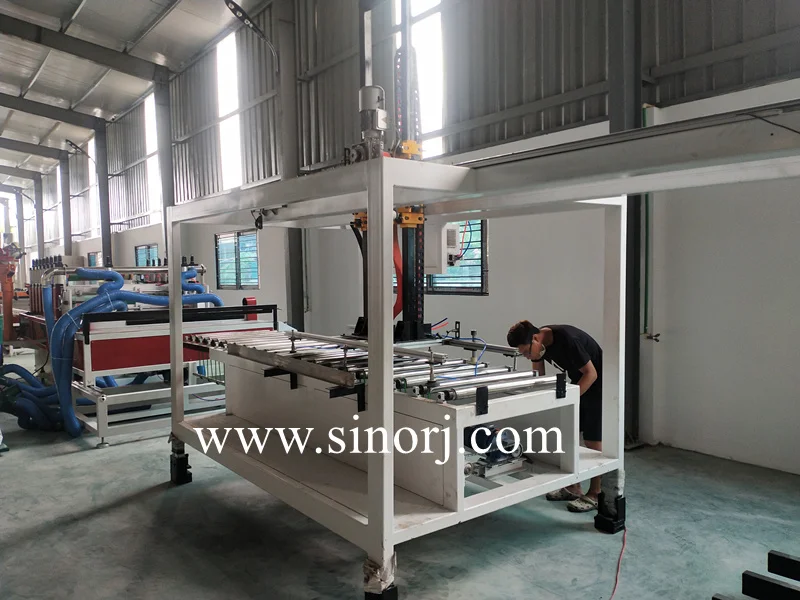

9 | Auto-Stacker |
Sheet/Plate Recycling machines | |
10 | Sheet Crusher/Grinder |
11 | PVC Pulverizer/Miller |
1. Material used: PVC powder, calcium carbonate powder (you can add wood powder in making WPC), and additives
2. Output: 350-450Kg/h
3. Products width: 1220mm
4. Products Thickness: 5-35mm
5. Auto stacker
6. Line speed: 0.2-3m/min
